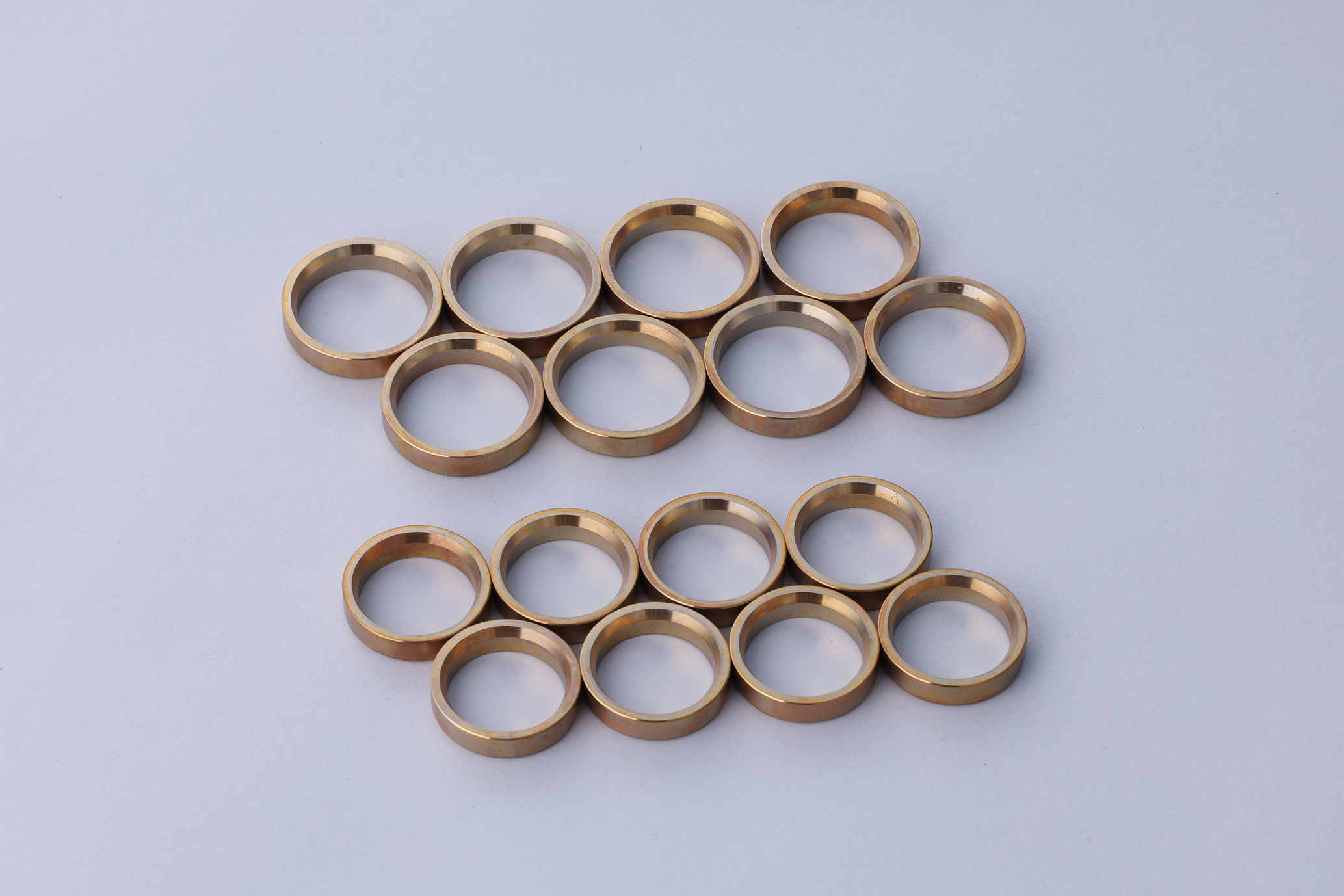

SR20DE(T) ベリリング

バルブ関連

バルブシートに求められる機能はバルブとの気密性を保つことで、一般には耐摩耗性が要求されます。しかし、高回転、高負荷で使用されるエンジンでは、さらにバルブシートの冷却性能が非常に重要になり、エンジン出力に大きく関わってきます。エンジンが高回転、高負荷の時、シリンダーヘッド、特に燃焼室まわりの温度は異常に上昇するため、冷却性能が低いとノッキング限界が高くならず、エンジンの高出力化も期待できません。レーシングエンジンでは熱的に厳しいバルブのシートリングまわりをどれだけ冷やせるかがカギになり、放熱性の高い銅系の材質をシートリングに用いる手法がとられてきました。
銅はあらゆる金属の中で、もっとも熱伝導性の高いもののひとつで(熱伝導度:1銀、2銅、3金、4アルミ・・・10 鋳鉄:ノーマル)、燃焼室の熱をシートリングで受け、速やかにシリンダーヘッドに伝えて冷却する効果があります。
TOMEIはこの銅合金の中で最も機械的強度を確保できるベリリウム銅合金(BeCu)を選定することで、抜群の燃焼室冷却性能を確保しつつ、耐疲労性と耐摩耗性を併せ持った理想のシートリング材を実現、高性能ターボエンジン用に“ベリ・リング”として設定しました。

PRODUCT INFO

適合 IN/EX 品番 定価 材質
SR20DE(T) SET 163100 ¥62,000 (税込 ¥68,200) ベリリウム(BeCu)
IN 161102 ¥4,000 (税込 ¥4,400)
EX 161103


BERY-RING SR20DE(T)

VALVE TRAIN

The function of which valve sheet is asked, is maintaining air tightness with a valve, and generally wear resistance is required. However, with the engine used by high rotation and high load, the cooling performance of a valve sheet becomes very important further, and it is greatly concerned with an engine output. When engine is high rotation and high load, it is impossible to achieve high output from the engine if cooling performance of the cylinder is low and knock limit does not become high, since the temperature of the circumference of a cylinder head rises unusually. In racing engine that temperature needed to be carefully controlled, how much you can cool the circumference of the sheet ring is the important issue, and the technique of using high heat conduction metal, such as copper for a sheet ring, has been taken. Copper has one of the highest thermal conductivities through all metal that enables receiving heat from cylinder and cool it down quickly by transmit the heat to the cylinder head. (Degree of heat conduction: 1.silver, 2.copper, 3.gold, 4.aluminium, ... 10. cast iron - STD). We select beryllium copper alloy (BeCu) that can secure mechanical intensity most in the copper alloy, which has ideal fatigue resistance and wear resistance while securing a preeminent cylinder cooling performance. We named it "bery-ring" and applied to the high performance turbo charged engine.

PRODUCT INFO

APPLICATION IN/EX P/N JPY MATERIAL
SR20DE(T) SET 163100 ¥62,000 Beryllium(BeCu)
IN 161102 ¥4,000
EX 161103
