MITSUBISHI
4G63-22 Kit/Conrod Bearing Bundle
Package |
 |
 |
 |
 |
|
 |
|
|
Bore
(φ) |
φ85.5 |
φ86.0 |
STD φ85.0 |
Stroke (mm) |
94.0 |
STD 88.0 |
Displacement
(cc) |
2158 |
2183 |
STD 1997 |
Piston Crown Volume(cc) |
20.5 |
|
|
|
THE
SUPER RESPONSIVE CRANKSHAFT,
FOR HIGH RPM!
THE TRUE COMPETITION KIT!!
|
Application |
Bore |
Part No. |
MSRP (USD) |
Part No.
With Conrod Bearings Bundle
Pack. |
MSRP (USD) |
EVO I - EVO IX |
φ85.5 |
221040 |
$6,750.00
|
* 223022 |
$7,070.00
|
φ86.0 |
221041 |
* 223023 |
|
|
| |
|
|
MITSUBISHI
4G63-23 Kit/Conrod Bearing Bundle
Package |
|
|
|
| |
|
GAIN
THE TORQUE ADVANTAGE OVER THE REST!
| |
 |
Feel
the plentiful torque that a
2.3 liter engine produces over
the stock displacement and dominate
the competition at any given
condition! Having a torque advantage
creates a feeling of almightiness
as well as enhanced drivability,
and adds much more sporty characteristic
to the vehicle. This stroker
kit can be used in conjunction
with a larger turbocharger if
even more power is the objective.
The forged components does not
even come close to comparison
over the stock engine by all
means, and the price is set
at an very affordable rate.
The 2.3 liter transformation
on the 4G63 is guaranteed to
enhance the performance on the
EVO.
|
| |
| ■

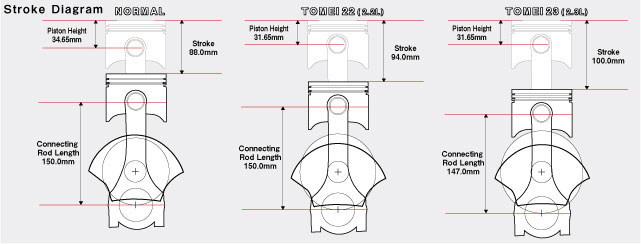

Displacement Comparison |
Bore |
Normal |
4G63-22 |
4G63-23 |
| φ85.5 |
2020cc |
2158cc |
2295cc |
| φ86.0 |
2044cc |
2183cc |
2323cc |
|
| |
| ■
Compression Comparison |
Product |
Piston
Size |
Compression
Ratio (Gasket Sizes) |
4G63-23 |
|
t-1.2mm |
t-1.5mm< |
t-1.8mm |
| 4G63-23 |
φ85.5 |
9.2 |
9.1 |
8.9 |
8.7 |
φ86.5 |
| φ86.0 |
9.3 |
9.2 |
9.0 |
8.8 |
|
| |
 |
|
■Exclusive
Packaging |
■Exclusive
Emblem |
■Kits
with Bearings |
The
Crank, pistons and the connecting
rods are packaged in one box
as an engine kit, ready to be
shipped to your door.
|
An
exclusive emblem to let everyone
know that your vehicle is equipped
with an engine kit from Tomei
Powered.
|
Collaborating
with ACL, Tomei has made an
option to include their Competition
Bearing Series product with
our kits. All the engine internals
are brought to static temperature
(20 degrees Celcius) and blueprinted
with 0.040~0.060mm clearance
bearings. This eliminates the
measuring and blueprinting process
for the customer, so the kit
can be installed with less hassle.
|
 |
 |
|
Application |
Bore
Size |
Part
No. |
MSRP
(USD) |
Part
No.
With Conrod Bearings Bundle
Pack. |
MSRP
(USD) |
EVO
I - EVO IX |
φ85.5 |
221042 |
$3,870.00 |
223020 |
$4,150.00 |
φ86.0 |
221043 |
223021 |
|
|
| |
