The Ideal RB26.
Super Response & Big Torque |
|
| You'll experience dramatical changes in the RB26 with just the increase of 200cc in displacement. Superior response throughout, with just the slight changes in the throttle. Big torque with an overhwelming feeling of acceleration. Allows more room to grow with the ability to leverage the potential of larger turbos. Made from forged alloy for added strength, with the precision that you'd expect from TOMEI. Uncomparable with standard parts, and best value for money. Even to this day, the RB26 is one of the most popular sports engine to tune. True to it's form, the TOMEI RB28 KIT completes this true race engine. |
|
 |
|
| |
 |
 |
Compatible with RB25 Engines!
 |
| ▲WITH RECESS |
▲WITHOUT RECESS |
|
|
PART |
APPLICATION |
BORE SIZE |
PART NUMBER |
MSRP(USD) |
NOTES |
With Recess Model |
BNR32
BCNR33
BNR34 |
Φ86.5 |
221028
|
$ 5,690 |
Option Extra: Titanium Top Coated
Piston Rings
$480 (USD) |
Φ87.0 |
221029
|
|
Without Recess Model |
Φ86.5 |
221022
|
| Φ87.0 |
221023 |
|
|
 |
KIT WITH BEARINGS INCLUDED |
 |
 |
|
 |
|
 |
|
TOMEI Competition Bearing series
The TOMEI Competition Bearing series are designed for fatigue resistance, durability, effective lubrication and resistance to scoring. Designed for use on engines that will be outputting 1,000 HP and at over 10,000RPM. These advanced designed bearings are suitable for the serious professionals in mind whom need results. We also have 3 grades available on all engine applications. |
|
 |
|
Tomei has made an option to include their Competition Bearing Series product with our kits. All the engine internals are brought to static temperature (20 degrees Celcius) and blueprinted with 0.040~0.060mm clearance bearings. This eliminates the measuring and blueprinting process for the customer, so the kit can be installed with less hassle. |
|
|
PART |
APPLICATION |
BORE SIZE |
PART NUMBER |
MSRP(USD) |
NOTE |
With Recess Model |
BNR32
BCNR33
BNR34 |
Φ86.5 |
250013
|
$7,680 |
The kit with the conrod
bearing option is supplied
with the 1 engine application. |
Φ87.0 |
250014
|
Without Recess Model |
Φ86.5 |
250001
|
| Φ87.0 |
250002 |
|
| |
|
Compression Ration Specs
|
Bore (φ) |
φ86.5 |
φ87.0 |
φ87.5 |
|
Valve Recess |
Without |
With |
Without |
With |
Without |
With |
|
Displacement (cc) |
-13.0 |
-11.2 |
-13.0 |
-11.2 |
-13.0 |
-11.2 |
| Gasket Thickness (mm) |
1
|
9.0 |
8.7 |
9.0 |
8.8 |
9.1 |
8.9 |
1.2
|
8.8
|
8.6 |
8.9 |
8.6 |
8.9 |
8.7 |
1.5
|
8.6 |
8.3 |
8.6 |
8.4 |
8.7 |
8.5 |
1.8
|
8.3 |
8.1
|
8.4
|
8.2
|
8.5
|
8.3 |
2.0 |
8.2 |
8.0 |
8.3 |
8.1 |
8.3 |
8.1 |
| GK Bore (φ) |
87.0 |
88.0 |
|

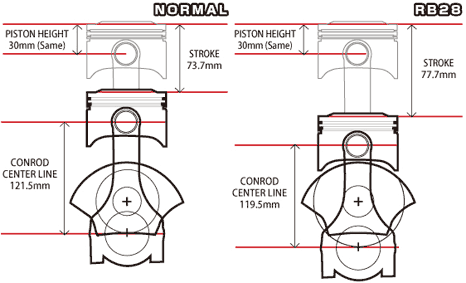

Displacement Comparison
Bore (φ)
|
φ86.0
|
φ86.5
|
φ87.0
|
φ87.5
|
73.7mm
|
2567cc
|
2597cc
|
2627cc
|
2657cc
|
77.7mm |
2707cc |
2738cc |
2770cc |
2802cc |
|
| ■■■■■ |
RB26 Standard |
■■■■■ |
RB28KIT (Piston Selection) |
|
|
|
|
|
|
|
|
|
|
|
