EXHAUST SYSTEM 　EXPREME　for LF-VE NC-EC ROADSTER

The Master Of Lightweight Sports
Now Gets The Best Exhaust System



With Or Without The Catalyzer
2 Options Available


■METAL CATALYZER VERSION
APPLICATION: MAZDA MX5 NCEC ‘05～’08 6MT

PART NUMBER : 193099
MSRP $1,790.00 (MSRP USD）

■STRAIGHT PIPE VERSION
APPLICATION: MAZDA MX5 NCEC ‘05～’08 SMT / 6MT / 6AT

PART NUMBER : 193100
MSRP $990.00 (MSRP USD）

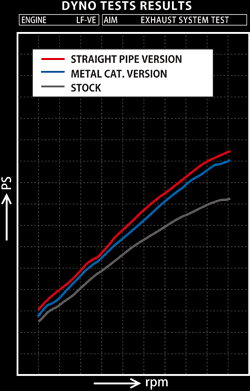

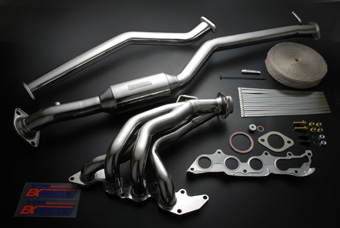

KIT CONTENTS
■EXHAUST MANIFOLD ■CAP BOLT M10 x L=25 x P=1.25
■METAL CATALYZER / STRAIGHT PIPE ■CORN SPRINGS M10
■BACK PIPE ■FLANGE BOLT M10 x L=35 x P=1.25
■EXHAUST MANIFOLD GASKET ■FLANGE NUT M10 x P=1.25
■BACK PIPE - MUFFLER GASKET ■TIE WRAP
■CATALYZER PIPE - BACK PIPE GASKET ■BOLT SMOOTH PASTE
■THERMAL BANDAGE 50mm x 10m ■STICKER (EXPREME)
■THERMAL BANDAGE BANDS (LONG) (SHORT) ■STICKER (TOMEI)
■BLIND PLUG M18　※ ■WARRANTY CERTIFICATE
■COPPER WASHER　※ ■JAPAN SMOG EMMISSIONS CERTIFICATE　※

※ Included in the Metal Catalyzer Version Kit Only
Japan's Emission Standards Certificate is also included.

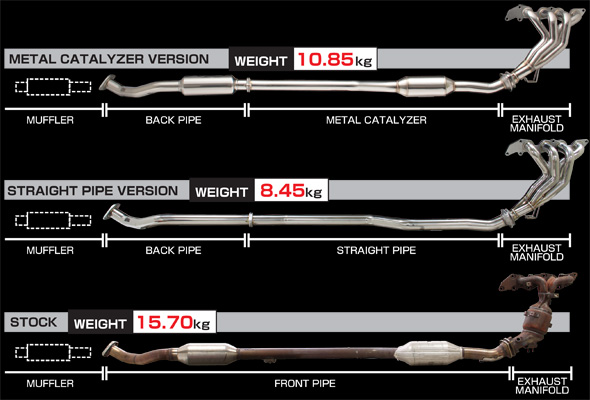

PRODUCT LAYOUT

The product has been designed for performance gains and for exhaust gas purification (only the Metal Catalyzer Version) and it's well balanced. The original factory stock layout has also been retained in this design for the best weight reduction results.

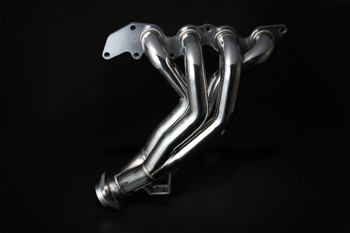

EXHAUST MANIFOLD

4-2-1 equal length layout designs

Uses a robust precise flange, and has the A/F Sensor boss.

The Lost-Wax casting process improves both precision and strength of the product.
And has the A/F Sensor boss.

By eliminating the first catalyst, we could achieve the best gas flow efficiency and further weight reductions.

MATERIAL
LAYOUT
PIPE DIA. (Φmm)
PIPE THINKNESS
FLANGE THICKNESS (mm)
WEIGHT
STOCK
Unknown
4-2-1
38.1-CAT-60.5
1.5
11.5 (Bolt Bearing Surface 5.0)
7.85
TOMEI
SUS304
4-1 (With Cat.)
42.7-48.6-60.5
1.5
11-8.5
5.05


METAL CATALYZER

The testing of several different types of cells, length & thickness, has led us to this 150cpsi cell design. It produces the best performance gains with the right smog emissions to comply with street regulations in Japan.

Boss for the A/F Sensor.

Meets the Japanese street legal emission standards with just a single catalyst.

MATERIAL
PIPE DIA. (Φ)
PIPE THICKNESS
FLANGE THICKNESS
CELL NO.
WEIGHT (kg)
STOCK
Unknown
60.5
1.5
2.0
Unknown
7.85（Body）
TOMEI
SUS304
60.5
1.5
2.0
150cpsi
4.50 (Catalyzer + Back Pipe)


STRAIGHT PIPE
MATERIAL
PIPE DIA.
（Φ）
PIPE
THICKNESS(mm)
FLANGE
THICKNESS(mm)
WEIGHT（kg）
STOCK
Unknown
60.5
1.5
2.0
7.85（BODY）
TOMEI
SUS304
60.5
1.5
2.0-8.5
3.40 (STRAIGHT PIPE + BACK PIPE)


BACK PIPE
MATERIAL
PIPE DIA.
（Φ）
PIPE
THICKNESS（mm）
FLANGE
THICKNESS（mm）
STOCK
Unknown
60.5
1.5
2.0
TOMEI
SUS304
60.5
1.5
8.5-8.5
