EXPREME EXHAUST MANIFOLD for Nissan Skyline GT-R RB26DETT

* Compatible with Genuine Heat Sheild

Kit Contents
	Exhaust Manifold
	Gasket
	Expreme Bandage (Thermo Bandage)
	Bolts
	Bolt Smooth Paste
	Sticker
	Installation Manual

INF Pamphlet

TOMEI Testing Standards

* Extensive testing in persuit of the most effective performance gain in all RPM ranges.

Comparison with Genuine

* A comparison with our product (on the left) & the Factory standard (on the right).

Superior Manufacturing Quality
	The products were made by "Lost Wax" production method with SUS304 alloy.
	For overall high performance we have designed the pipe diameter to be 41.5mm in diameter & 2.5mm in thickness which brings out the high quality sound.
	Highly accurate TIG welding.
	Smooth bends to decreases exhaust flow interference.
	The pipe angles were designed to increase exhaust flow efficiency.
	Attention to details with the smoothness of the internals of the product.

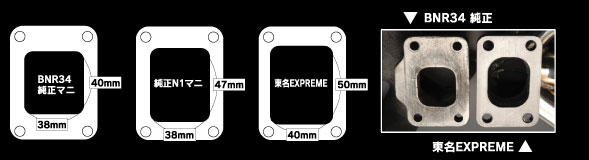

A Comparison of the Exhaust Manifolds Exit.

A Comparison of the Exhaust Manifolds Entrance.

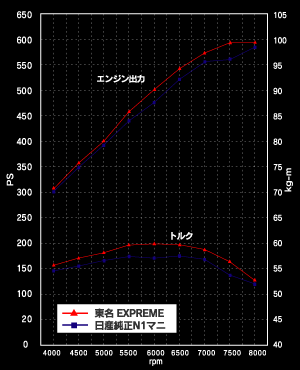

EXPREME Manifold/Nissan Genuine N1 manifold Dyno Graph Comparison.

An overall improvement of output torque & power is clearly visible with this graph in comparison with the genuine factory N1 Manifold. Our EXPREME product clearly surpasses the N1 performance.

RB26DETT with the EXPREME Manifold

EXPREME Exhaust System for RB26DETT

MODEL	TYPE	PART NUMBER	TURBINE
BNR32	RB26DETT	193084	Genuine STD Genuine N1 Aftermarket Bolt On Products
BCNR33
BNR34

* Compatible with the factory standard heat shield.

Data

MATERIAL		PIPE DIAMETER (φ)	PIPE THICKNESS (mm)	WEIGHT (kｇ)
PIPE	FLANGE
SUS304	Steel	41.5	2.5	3.6 (Normal 6.6)

MSRP $790.00 USD

INF Pamphlet

RB26 Exhaust Manifold		RB26 ECU

EXPREME Exhaust System＋ECU for RB26DETT

PRODUCT	MODEL	TYPE	PART NUMBER	MSRP
EXPREME Exhaust Manifold ＋ ECU	BNR32	RB26DETT	193084＋ 8120155000	$1,660.00 USD
	BCNR33		193084＋ 8120255000	$1,790.00 USD
	BNR34		193084＋ 8120355000	$1,790.00 USD

* Not compatible with BNR34 factory immobilizer. An additional aftermarket security system is required to protect your car from theft.
* The TOMEI ECU is based on the trade-in of your original factory ECU. (The trade-in ECU deposit is 65,000 yen)
* The TOMEI ECU is designed for use in Japan ONLY as the data has been setup to suit Japanese Fuel Octane standards.
